Please remember that online images are digital representations of patterns, and the actual colors may vary slightly (e.g., a little lighter or darker than you see). It is highly recommended that you order samples for an accurate color match. We offer standard memo samples for $5.99 each, and USPS Priority shipping is free. Contact us if you want faster shipping options.

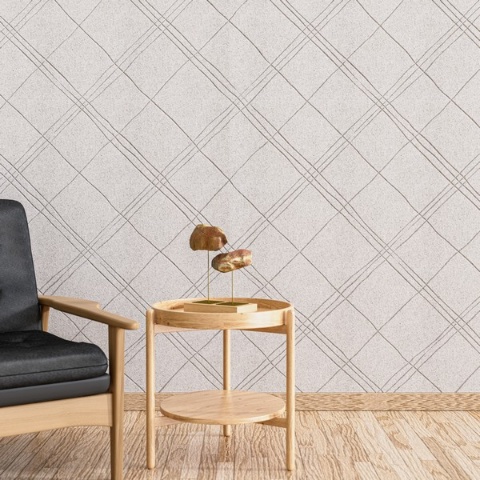

Zintra Acoustical Collection

Zintra Organic Etch Plaid Acoustic Pane

Name: Zintra Organic Etch Plaid
SKU: Plaid

SKU : Plaid

Application : Acoustics

Product Type : Acoustics Walls

For pricing, please Login or Register

Availability Contact Us

Request A Quote

Description

Zintra Organic Etch Plaid Acoustic Pane

Specifications

Product Specifications

Pattern # : Plaid

Pattern Name : Zintra Organic Etch Plaid

Other Features

Note : This pattern can be customized in 65 different colors. Please contact customer service for more information.

Product Specifications

Acoustic Rating : Directly Mounted: 0.45 NRC | With 2” Air Gap: 0.85 NRC | With 6” Air Gap: 0.90 NRC

Content / Material : 100% Solution Dyed Polyester

Dimensions : 44" w x 108" h

Lightfastness : AATCC 16.3, Option 3: Zintra 1/2" (12mm) Panel color change at 40AFU is 4.5

NRC Rating : Directly Mounted: 0.45 NRC | With 2” Air Gap: 0.85 NRC | With 6” Air Gap: 0.90 NRC

Temperature : Maximum temperature exposure is 240°F (115°C)

Type : 22

VOC Testing : In accordance with Standard Method Version 1.2 for CDPH 01350, Zintra Acoustic Panels received a PASS for all testing scenarios.

Width & Length Tolerance : e +/- 1/8”

Size

44 in. X 108 in. : Available

Physical Properties

Type : Acoustics

Size : 44 in. X 108 in.

Thickness : 1/2"

Color(s) : Grey, Taupe

Fire Hazard Classification

Fire Rating : ASTM-E84 – Class A classification AS ISO 9708

Environment & Health Classification

Sustainable Materials : Zintra is made from 100% recyclable materials. 60% post-consumer recycled content from Zintra bottles. 35% pre-consumer recycled content from Zintra chips. 5% polylactic acid (PLA).
